Use the API Server

Supported in ADKPython v0.1.0TypeScript v0.2.0Go v0.1.0Java v0.1.0

Before you deploy your agent, you should test it to ensure that it is working as intended. Use the API server in ADK to expose your agents through a REST API for programmatic testing and integration.

Start the API server

Use the following command to run your agent in an ADK API server:

PythonTypeScriptGoJava

adk api_server

npx adk api_server

In Go, there is no standalone adk CLI. Instead, you embed the launcher directly in your agent's main.go. The full.NewLauncher() helper bundles the REST API, Web UI, and other modes into a single binary:

main.go

import (
    "google.golang.org/adk/cmd/launcher"
    "google.golang.org/adk/cmd/launcher/full"
)

func main() {
    // ... build your agent and config ...
    l := full.NewLauncher()
    if err := l.Execute(ctx, config, os.Args[1:]); err != nil {
        log.Fatalf("Run failed: %v\n\n%s", err, l.CommandLineSyntax())
    }
}

Then start the API server by passing the web and api subcommands on the command line:

go run agent.go web api

The web keyword activates the HTTP server. api adds the ADK REST API backend and registers all routes under the /api path prefix by default.

Make sure to update the port number.

MavenGradle

With Maven, compile and run the ADK web server:

mvn compile exec:java \
 -Dexec.args="--adk.agents.source-dir=src/main/java/agents --server.port=8080"

With Gradle, the build.gradle or build.gradle.kts build file should have the following Java plugin in its plugins section:

plugins {
    id('java')
    // other plugins
}

Then, elsewhere in the build file, at the top-level, create a new task:

tasks.register('runADKWebServer', JavaExec) {
    dependsOn classes
    classpath = sourceSets.main.runtimeClasspath
    mainClass = 'com.google.adk.web.AdkWebServer'
    args '--adk.agents.source-dir=src/main/java/agents', '--server.port=8080'
}

Finally, on the command-line, run the following command:

gradle runADKWebServer

In Java, both the Dev UI and the API server are bundled together.

This command will launch a local web server, where you can run cURL commands or send API requests to test your agent. By default, the server runs on http://localhost:8000.

Advanced Usage and Debugging

For a complete reference on all available endpoints, request/response formats, and tips for debugging (including how to use the interactive API documentation), see the ADK API Server Guide below.

Test locally

Testing locally involves launching a local web server, creating a session, and sending queries to your agent. First, ensure you are in the correct working directory.

For TypeScript, you should be inside the agent project directory itself.

parent_folder/
└── my_sample_agent/  <-- For TypeScript, run commands from here
    └── agent.py (or Agent.java or agent.ts)

Launch the Local Server

Next, launch the local server using the commands listed above.

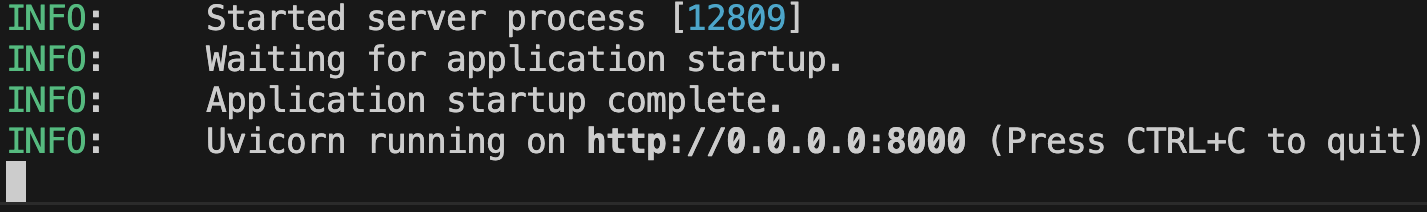

The output should appear similar to:

PythonTypeScriptGoJava

INFO:     Started server process [12345]
INFO:     Waiting for application startup.
INFO:     Application startup complete.
INFO:     Uvicorn running on http://localhost:8000 (Press CTRL+C to quit)

+-----------------------------------------------------------------------------+
| ADK Web Server started                                                      |
|                                                                             |
| For local testing, access at http://localhost:8000.                         |
+-----------------------------------------------------------------------------+

2025/01/01 00:00:00 Starting the web server: &{port:8080 ...}
2025/01/01 00:00:00 Web servers starts on http://localhost:8080
2025/01/01 00:00:00        api:  you can access API using http://localhost:8080/api
2025/01/01 00:00:00        api:      for instance: http://localhost:8080/api/list-apps

Go: default port and path prefix

The Go API server defaults to port 8080 (not 8000) and serves all REST endpoints under the /api path prefix by default. Adjust all example curl commands below accordingly:

Python/TypeScript/Java	Go
http://localhost:8000/list-apps	http://localhost:8080/api/list-apps
http://localhost:8000/apps/…	http://localhost:8080/api/apps/…
http://localhost:8000/run	http://localhost:8080/api/run
http://localhost:8000/run_sse	http://localhost:8080/api/run_sse

The port can be changed with the -port flag on the web subcommand and the prefix can be changed with the -path_prefix flag on the api subcommand. For example:

go run agent.go web -port 8000 api -path_prefix ""

2025-05-13T23:32:08.972-06:00  INFO 37864 --- [ebServer.main()] o.s.b.w.embedded.tomcat.TomcatWebServer  : Tomcat started on port 8080 (http) with context path '/'
2025-05-13T23:32:08.980-06:00  INFO 37864 --- [ebServer.main()] com.google.adk.web.AdkWebServer          : Started AdkWebServer in 1.15 seconds (process running for 2.877)
2025-05-13T23:32:08.981-06:00  INFO 37864 --- [ebServer.main()] com.google.adk.web.AdkWebServer          : AdkWebServer application started successfully.

Your server is now running locally. Ensure you use the correct port number in all the subsequent commands.

Create a new session

With the API server still running, open a new terminal window or tab and create a new session with the agent using:

curl -X POST http://localhost:8000/apps/my_sample_agent/users/u_123/sessions/s_123 \
  -H "Content-Type: application/json" \
  -d '{"key1": "value1", "key2": 42}'

Let's break down what's happening:

• http://localhost:8000/apps/my_sample_agent/users/u_123/sessions/s_123: This creates a new session for your agent my_sample_agent, which is the name of the agent folder, for a user ID (u_123) and for a session ID (s_123). You can replace my_sample_agent with the name of your agent folder. You can replace u_123 with a specific user ID, and s_123 with a specific session ID.
• {"key1": "value1", "key2": 42}: This is optional. You can use this to customize the agent's pre-existing state (dict) when creating the session.

This should return the session information if it was created successfully. The output should appear similar to:

{"id":"s_123","appName":"my_sample_agent","userId":"u_123","state":{"key1":"value1","key2":42},"events":[],"lastUpdateTime":1743711430.022186}

Info

You cannot create multiple sessions with exactly the same user ID and session ID. If you try to, you may see a response, like: {"detail":"Session already exists: s_123"}. To fix this, you can either delete that session (e.g., s_123), or choose a different session ID.

Send a query

There are two ways to send queries via POST to your agent, via the /run or /run_sse routes.

• POST http://localhost:8000/run: collects all events as a list and returns the list all at once. Suitable for most users (if you are unsure, we recommend using this one).
• POST http://localhost:8000/run_sse: returns as Server-Sent-Events, which is a stream of event objects. Suitable for those who want to be notified as soon as the event is available. With /run_sse, you can also set streaming to true to enable token-level streaming.

Using /run

curl -X POST http://localhost:8000/run \
-H "Content-Type: application/json" \
-d '{
"appName": "my_sample_agent",
"userId": "u_123",
"sessionId": "s_123",
"newMessage": {
    "role": "user",
    "parts": [{
    "text": "Hey whats the weather in new york today"
    }]
}
}'

In TypeScript, currently only camelCase field names are supported (e.g. appName, userId, sessionId, etc.).

If using /run, you will see the full output of events at the same time, as a list, which should appear similar to:

[{"content":{"parts":[{"functionCall":{"id":"af-e75e946d-c02a-4aad-931e-49e4ab859838","args":{"city":"new york"},"name":"get_weather"}}],"role":"model"},"invocationId":"e-71353f1e-aea1-4821-aa4b-46874a766853","author":"weather_time_agent","actions":{"stateDelta":{},"artifactDelta":{},"requestedAuthConfigs":{}},"longRunningToolIds":[],"id":"2Btee6zW","timestamp":1743712220.385936},{"content":{"parts":[{"functionResponse":{"id":"af-e75e946d-c02a-4aad-931e-49e4ab859838","name":"get_weather","response":{"status":"success","report":"The weather in New York is sunny with a temperature of 25 degrees Celsius (41 degrees Fahrenheit)."}}}],"role":"user"},"invocationId":"e-71353f1e-aea1-4821-aa4b-46874a766853","author":"weather_time_agent","actions":{"stateDelta":{},"artifactDelta":{},"requestedAuthConfigs":{}},"id":"PmWibL2m","timestamp":1743712221.895042},{"content":{"parts":[{"text":"OK. The weather in New York is sunny with a temperature of 25 degrees Celsius (41 degrees Fahrenheit).\n"}],"role":"model"},"invocationId":"e-71353f1e-aea1-4821-aa4b-46874a766853","author":"weather_time_agent","actions":{"stateDelta":{},"artifactDelta":{},"requestedAuthConfigs":{}},"id":"sYT42eVC","timestamp":1743712221.899018}]

Using /run_sse

curl -X POST http://localhost:8000/run_sse \
-H "Content-Type: application/json" \
-d '{
"appName": "my_sample_agent",
"userId": "u_123",
"sessionId": "s_123",
"newMessage": {
    "role": "user",
    "parts": [{
    "text": "Hey whats the weather in new york today"
    }]
},
"streaming": false
}'

You can set streaming to true to enable token-level streaming, which means the response will be returned to you in multiple chunks and the output should appear similar to:

data: {"content":{"parts":[{"functionCall":{"id":"af-f83f8af9-f732-46b6-8cb5-7b5b73bbf13d","args":{"city":"new york"},"name":"get_weather"}}],"role":"model"},"invocationId":"e-3f6d7765-5287-419e-9991-5fffa1a75565","author":"weather_time_agent","actions":{"stateDelta":{},"artifactDelta":{},"requestedAuthConfigs":{}},"longRunningToolIds":[],"id":"ptcjaZBa","timestamp":1743712255.313043}

data: {"content":{"parts":[{"functionResponse":{"id":"af-f83f8af9-f732-46b6-8cb5-7b5b73bbf13d","name":"get_weather","response":{"status":"success","report":"The weather in New York is sunny with a temperature of 25 degrees Celsius (41 degrees Fahrenheit)."}}}],"role":"user"},"invocationId":"e-3f6d7765-5287-419e-9991-5fffa1a75565","author":"weather_time_agent","actions":{"stateDelta":{},"artifactDelta":{},"requestedAuthConfigs":{}},"id":"5aocxjaq","timestamp":1743712257.387306}

data: {"content":{"parts":[{"text":"OK. The weather in New York is sunny with a temperature of 25 degrees Celsius (41 degrees Fahrenheit).\n"}],"role":"model"},"invocationId":"e-3f6d7765-5287-419e-9991-5fffa1a75565","author":"weather_time_agent","actions":{"stateDelta":{},"artifactDelta":{},"requestedAuthConfigs":{}},"id":"rAnWGSiV","timestamp":1743712257.391317}

Send a query with a base64 encoded file using /run or /run_sse

curl -X POST http://localhost:8000/run \
-H 'Content-Type: application/json' \
-d '{
   "appName":"my_sample_agent",
   "userId":"u_123",
   "sessionId":"s_123",
   "newMessage":{
      "role":"user",
      "parts":[
         {
            "text":"Describe this image"
         },
         {
            "inlineData":{
               "displayName":"my_image.png",
               "data":"iVBORw0KGgoAAAANSUhEUgAAAgAAAAIACAYAAAD0eNT6AAAACXBIWXMAAAsTAAALEwEAmpw...",
               "mimeType":"image/png"
            }
         }
      ]
   },
   "streaming":false
}'

Info

If you are using /run_sse, you should see each event as soon as it becomes available.

Integrations

ADK uses Callbacks to integrate with third-party observability tools. These integrations capture detailed traces of agent calls and interactions, which are crucial for understanding behavior, debugging issues, and evaluating performance.

• Comet Opik is an open-source LLM observability and evaluation platform that natively supports ADK.

Deploy your agent

Now that you've verified the local operation of your agent, you're ready to move on to deploying your agent! Here are some ways you can deploy your agent:

• Deploy to Agent Runtime, a simple way to deploy your ADK agents to a managed service on Agent Platform on Google Cloud.
• Deploy to Cloud Run and have full control over how you scale and manage your agents using serverless architecture on Google Cloud.

Interactive API docs

Python and TypeScript only

Swagger UI interactive documentation is served at /docs by the Python and TypeScript ADK API servers only. The Go API server does not expose a /docs endpoint. To explore the Go REST API, use the endpoint reference below or send requests directly with curl.

The API server automatically generates interactive API documentation using Swagger UI. This is an invaluable tool for exploring endpoints, understanding request formats, and testing your agent directly from your browser.

To access the interactive docs, start the API server and navigate to http://localhost:8000/docs in your web browser.

You will see a complete, interactive list of all available API endpoints, which you can expand to see detailed information about parameters, request bodies, and response schemas. You can even click "Try it out" to send live requests to your running agents.

API endpoints

The following sections detail the primary endpoints for interacting with your agents.

JSON Naming Convention

• Both Request and Response bodies will use camelCase for field names (e.g., "appName").

Utility endpoints

List available agents

Returns a list of all agent applications discovered by the server.

• Method: GET
• Path: /list-apps

Example Request

curl -X GET http://localhost:8000/list-apps

Example Response

["my_sample_agent", "another_agent"]

---

Session management

Sessions store the state and event history for a specific user's interaction with an agent.

Update a session

Not available in Go

The PATCH session update endpoint is not implemented in the Go ADK REST API server. To modify session state in Go, pass a stateDelta field in your /run or /run_sse request body instead.

Updates an existing session.

• Method: PATCH
• Path: /apps/{app_name}/users/{user_id}/sessions/{session_id}

Request Body

{
  "stateDelta": {
    "key1": "value1",
    "key2": 42
  }
}

Example Request

curl -X PATCH http://localhost:8000/apps/my_sample_agent/users/u_123/sessions/s_abc \
  -H "Content-Type: application/json" \
  -d '{"stateDelta":{"visit_count": 5}}'

Example Response

{"id":"s_abc","appName":"my_sample_agent","userId":"u_123","state":{"visit_count":5},"events":[],"lastUpdateTime":1743711430.022186}

Get a session

Retrieves the details of a specific session, including its current state and all associated events.

• Method: GET
• Path: /apps/{app_name}/users/{user_id}/sessions/{session_id}

Example Request

curl -X GET http://localhost:8000/apps/my_sample_agent/users/u_123/sessions/s_abc

Example Response

{"id":"s_abc","appName":"my_sample_agent","userId":"u_123","state":{"visit_count":5},"events":[...],"lastUpdateTime":1743711430.022186}

Delete a session

Deletes a session and all of its associated data.

• Method: DELETE
• Path: /apps/{app_name}/users/{user_id}/sessions/{session_id}

Example Request

curl -X DELETE http://localhost:8000/apps/my_sample_agent/users/u_123/sessions/s_abc

Example Response A successful deletion returns an empty response. Python and TypeScript return a 204 No Content status code. Go returns 200 OK with an empty body.

---

Agent execution

These endpoints are used to send a new message to an agent and get a response.

Run agent (single response)

Executes the agent and returns all generated events in a single JSON array after the run is complete.

• Method: POST
• Path: /run

Request Body

{
  "appName": "my_sample_agent",
  "userId": "u_123",
  "sessionId": "s_abc",
  "newMessage": {
    "role": "user",
    "parts": [
      { "text": "What is the capital of France?" }
    ]
  }
}

In TypeScript, currently only camelCase field names are supported (e.g. appName, userId, sessionId, etc.).

Example Request

curl -X POST http://localhost:8000/run \
  -H "Content-Type: application/json" \
  -d '{
    "appName": "my_sample_agent",
    "userId": "u_123",
    "sessionId": "s_abc",
    "newMessage": {
      "role": "user",
      "parts": [{"text": "What is the capital of France?"}]
    }
  }'

Run agent (streaming)

Executes the agent and streams events back to the client as they are generated using Server-Sent Events (SSE).

• Method: POST
• Path: /run_sse

Request Body The request body is the same as for /run, with an additional optional streaming flag.

{
  "appName": "my_sample_agent",
  "userId": "u_123",
  "sessionId": "s_abc",
  "newMessage": {
    "role": "user",
    "parts": [
      { "text": "What is the weather in New York?" }
    ]
  },
  "streaming": true
}

- streaming: (Optional) Set to true to enable token-level streaming for model responses. Defaults to false.

Example Request

curl -X POST http://localhost:8000/run_sse \
  -H "Content-Type: application/json" \
  -d '{
    "appName": "my_sample_agent",
    "userId": "u_123",
    "sessionId": "s_abc",
    "newMessage": {
      "role": "user",
      "parts": [{"text": "What is the weather in New York?"}]
    },
    "streaming": false
  }'
